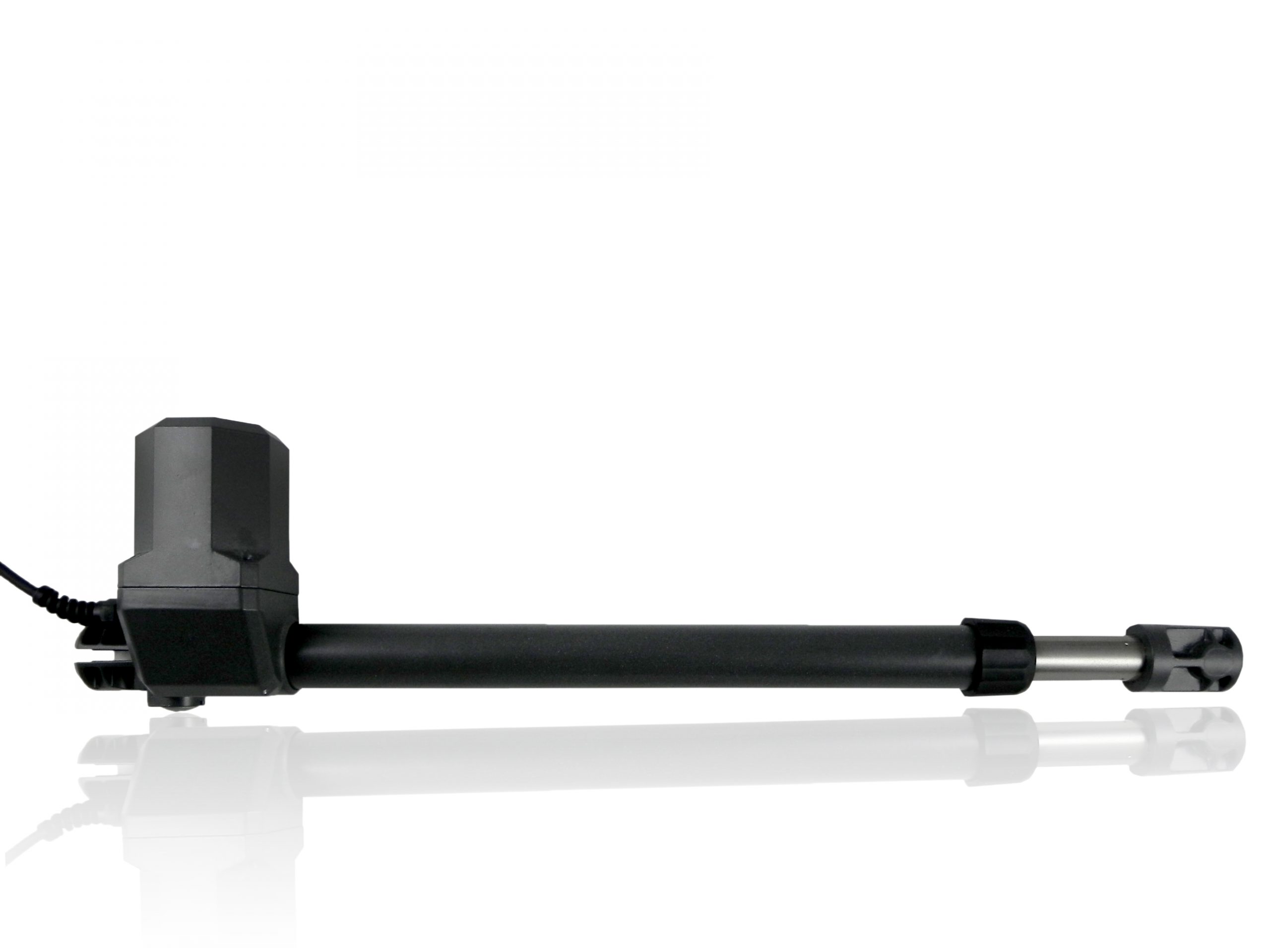

Designed upside-down to fit ground-height installations. Available in 24V and 230V, only motor and complete kit.
Special Motors 110V or 12V on request
| PRODUCT | STROKE | VOLTAGE | GATE LEAF WIDTH / WEIGHT | OPENING TIME |
|---|---|---|---|---|
| Poseidon S | 300mm | 230V / 24V | up to 3 m / 350Kg | 15s |
| Poseidon M | 400mm | 230V / 24V | up to 4 m / 350Kg | 20s |
| Poseidon L | 600mm | 230V / 24V | up to 5 m / 350Kg | 29s |
| TECHNICAL DATA | 230V | 24V |
|---|---|---|
| Current | 1,5 A | 3 A |
| Motor Power | 330W | 70W |
| Thrust Force | 3300N | 3300N |
| Operating Temperature | -25°C +60°C | |
| Class IP protection | IP43 | |
| Maximum Opening Angle | 110° |

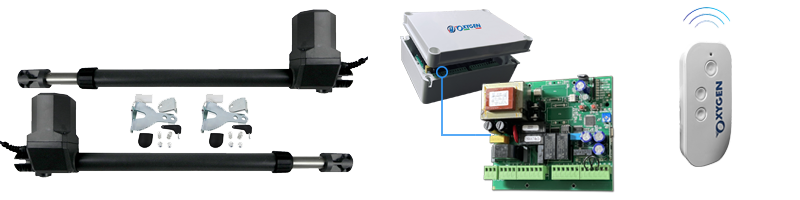

2x Motors (L&R) + Control Board with Receiver + 1x Remote Control

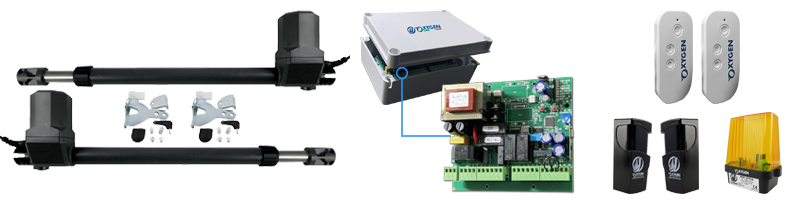

2x Motors (L&R) + Control Board with Receiver + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
