Adjustable mechanical limit switches. Available in only motor and complete kit.
This motor does not require ground (end) stops
Special Motors 110V, 24V and 12V on request
| PRODUCT | STROKE | VOLTAGE | GATE LEAF WIDTH / WEIGHT | OPENING TIME |
|---|---|---|---|---|
| Castor | 400mm | 230V | up to 3,5m / 200Kg | 21s |
| TECHNICAL DATA | 230V |
|---|---|
| Current | 1,8 A |
| Motor Power | 280W |
| Thrust Force | 2200N |
| Operating Temperature | -25°C +60°C |
| Class IP protection | IP44 |
| Maximum Opening Angle | 110° |

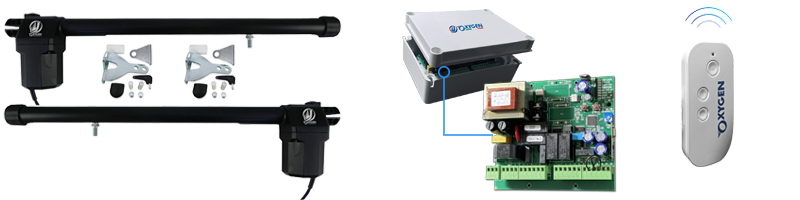

2x Motors (L&R) + Control Board with Receiver + 1x Remote Control

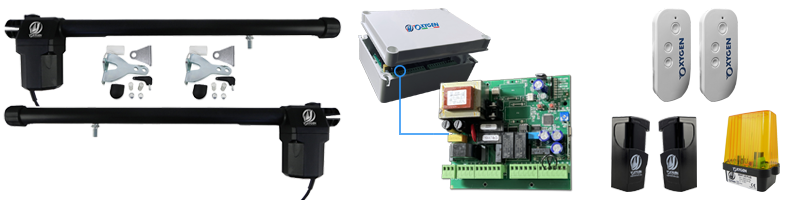

2x Motors (L&R) + Control Board with Receiver + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
