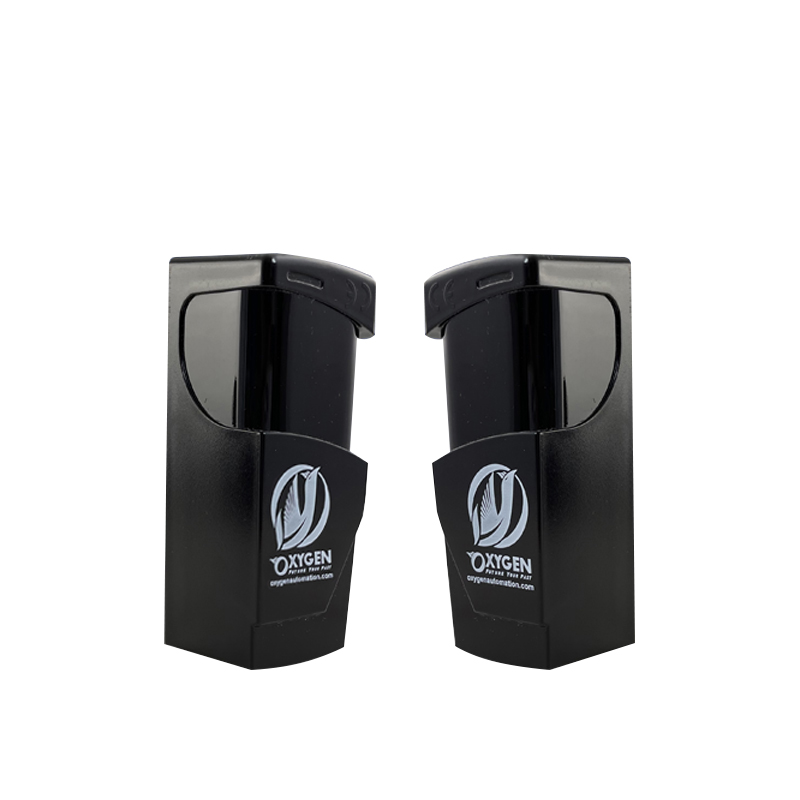

Clean and elegant design, can be rotated internally to fit all installations.
Standard photocells for the safety of every installation.
Needs to be wired to the Control Unit
| TYPE | DESCRIPTION |
|---|---|
| Wall 180° | Standard photocells adjustable 180° |
| Wall 180° B | Battery photocells adjustable 180° |
| TECHNICAL DATA | DESCRIPTION |
|---|---|
| Power supply | 12V / 24V DC/AC |
| Absorption | TX=40Ma Max RX=50Ma Max / Battery photocells: TX=3V 2x1,5 alcaline battery (AA) RX=50Ma Max |
| Operating temperature | -20°C / +60°C |
| Range | 12 Meters Max |
| IP | IP 43 |
| Dimensions | 100x40x35 mm |
