NEREA 230V

Nerea Control Unit for Swing Gates

Clean and elegant design, quick and easy installation.

TECHNICAL DATADETAILS
Power supply230Vac 50-60Hz 1600W max.
Flashing light output230Vac 500W max.
Motors output2x 230Vac 50/60Hz 500W max.
Electric lock output12Vdc 15W max with adjustable settings
Power supply to photocells24Vac 3W max
Working temperature-10/+55 °C
Radio receiver (integrated)433Mhz
TX max codes in memory150 (CODE or PED CODE)
Board dimensions140x125x45mm
Selectable logic:Automatic or step-by-step
Slow down and soft start adjustable functions
Pedestrian openingwith pedestrian working time adjustment
2 different safety devices inputs
Easy electronic power adjustment with designated trimmer
External devices connectionNormally open free contact
Easy separate motors working time adjustment
Hydraulic motors pressure maintenance
Opening and closing on two different remote control buttons

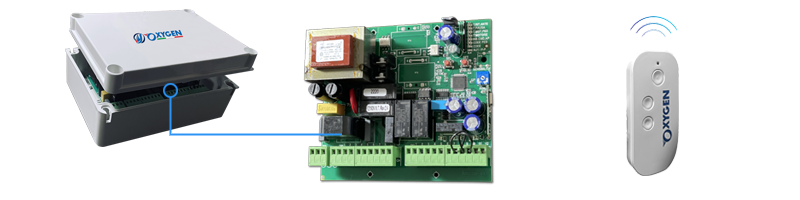

Control Board with Receiver and Box + 1x Remote Control

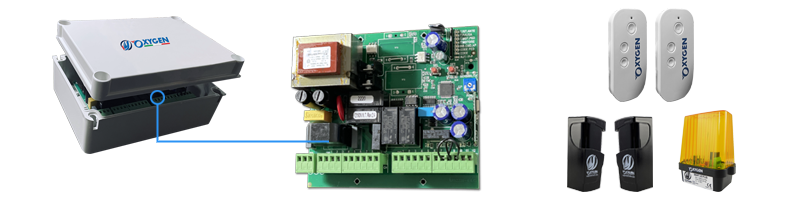

Control Board with Receiver and Box + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
