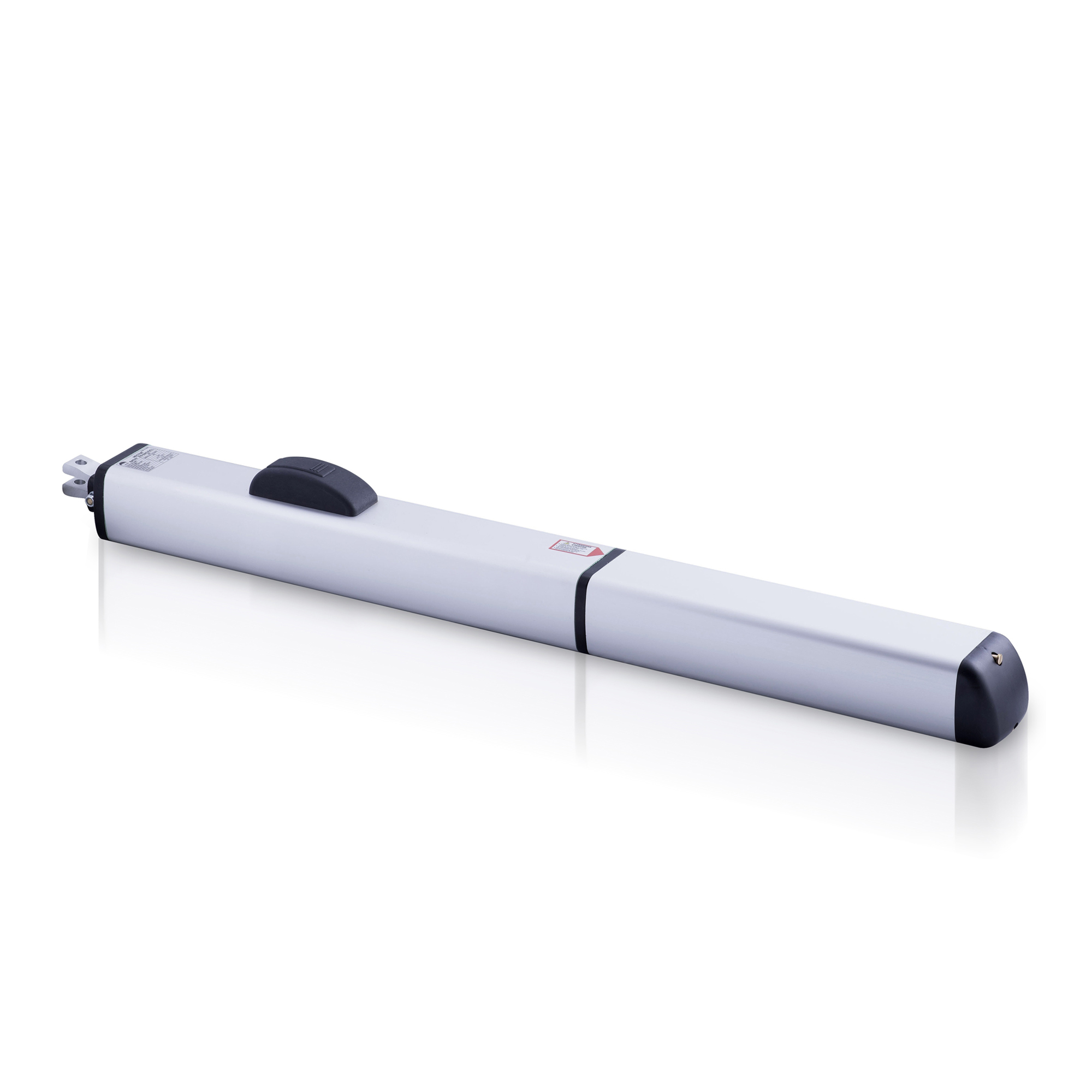

Designed to move even the heaviest of gates. Available in only motor and complete kit.
PRODUCT | STROKE | VOLTAGE | GATE LEAF WIDTH / WEIGHT | OPENING TIME |
---|---|---|---|---|
Hector | 270mm | 230V | up to 4m / 500Kg | 20s |
Hector ADV | 390mm | 230V | up to 7m / 700Kg | 30s |
TECHNICAL DATA | HECTOR 230V | HECTOR ADV 230V |
---|---|---|
Current | 1 A | 1,9 A |
Motor Power | 250W | 350W |
Thrust Force | 6500N | 7800N |
Operating Temperature | -20°C +70°C | -20°C +70°C |
Class IP protection | IP55 | IP55 |
Maximum Opening Angle | 120° | 120° |

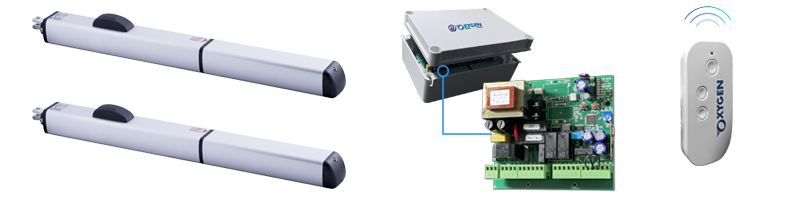

2x Motors + Control Board with Receiver + 1x Remote Control

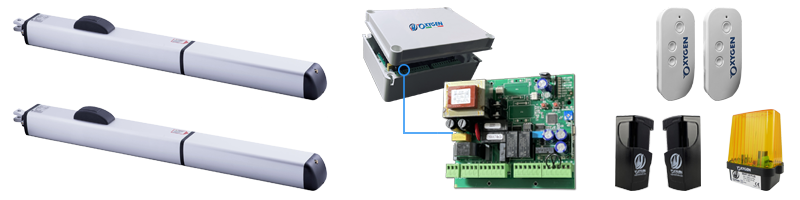

2x Motors + Control Board with Receiver + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
