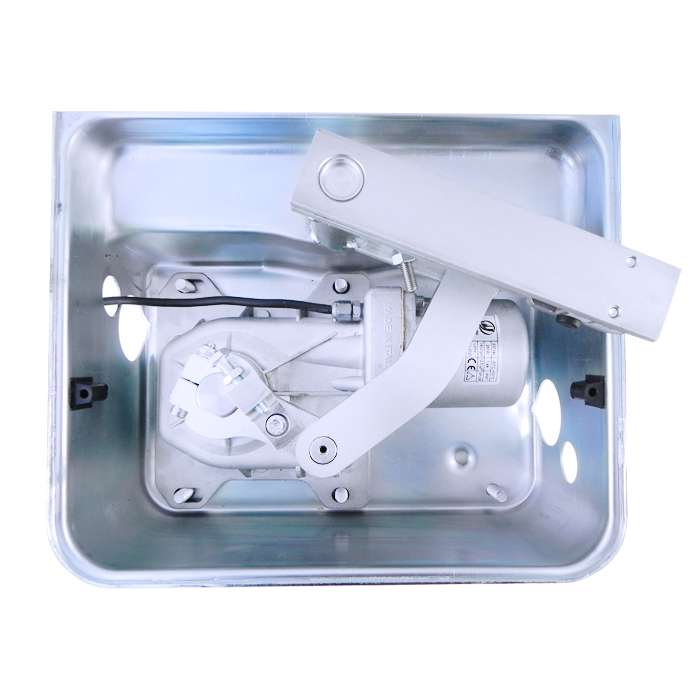

Gives the gate a clean design and can also fit installations with no space for a motor. Available in only motor and complete kit, with and without foundation box.
| PRODUCT | VOLTAGE | GATE LEAF WIDTH / WEIGHT | STANDARD OPENING | OPENING TIME |
|---|---|---|---|---|
| Hades | 230V / 24V | up to 2,5m / 400Kg | 90° | 16s |
| TECHNICAL DATA | 230V | 24V |
|---|---|---|
| Current | 1,4 A | 3 A |
| Motor Power | 280W | 50W |
| Condenser | 12,5 μF | / |
| Thrust Force | 250Nm | |
| Operating Temperature | -20°C +55°C | |
| Class IP protection | IP67 | |
| Maximum Opening Angle | 110° |

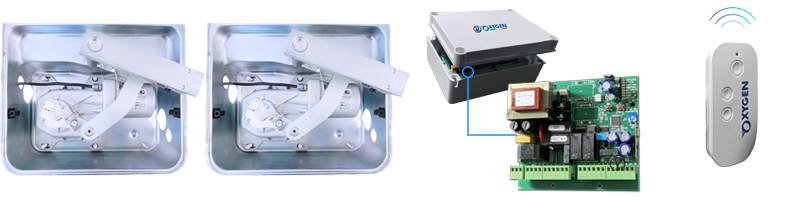

2x Motors + 2x Foundation Boxes + Control Board with Receiver + 1x Remote Control

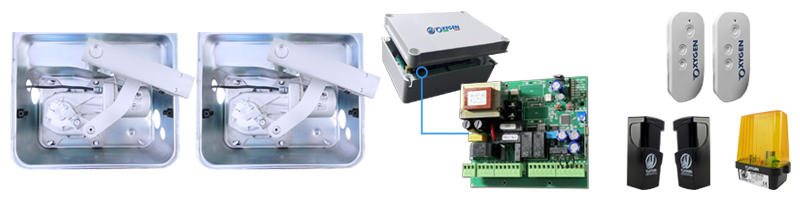

2x Motors + 2x Foundation Boxes + Control Board with Receiver + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
