Elegant design, quick and easy installation. Available in only motor and complete kit.
Special motor for 240 / 260 mm pulley and 76 mm tube on request
| PRODUCT | VOLTAGE | ROLLING SHUTTER WEIGHT | PULLEY | TUBE |
|---|---|---|---|---|

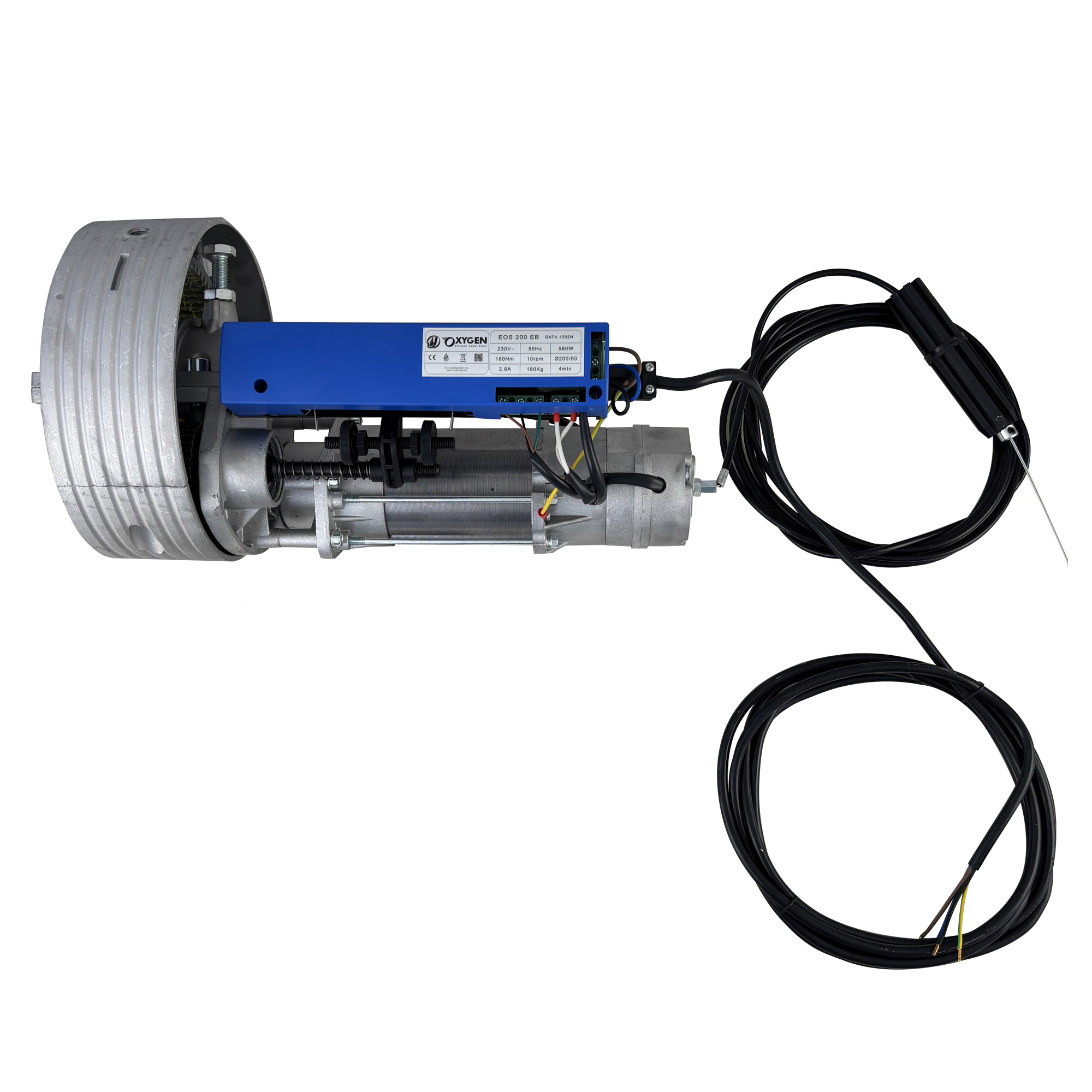

| EOS 200 EB | 230V | up to 180Kg | 200 / 220 mm | 60 / 48 / 42 mm |
| EOS 200 EB DM | 230V | up to 360Kg | 200 / 220 mm | 60 mm |

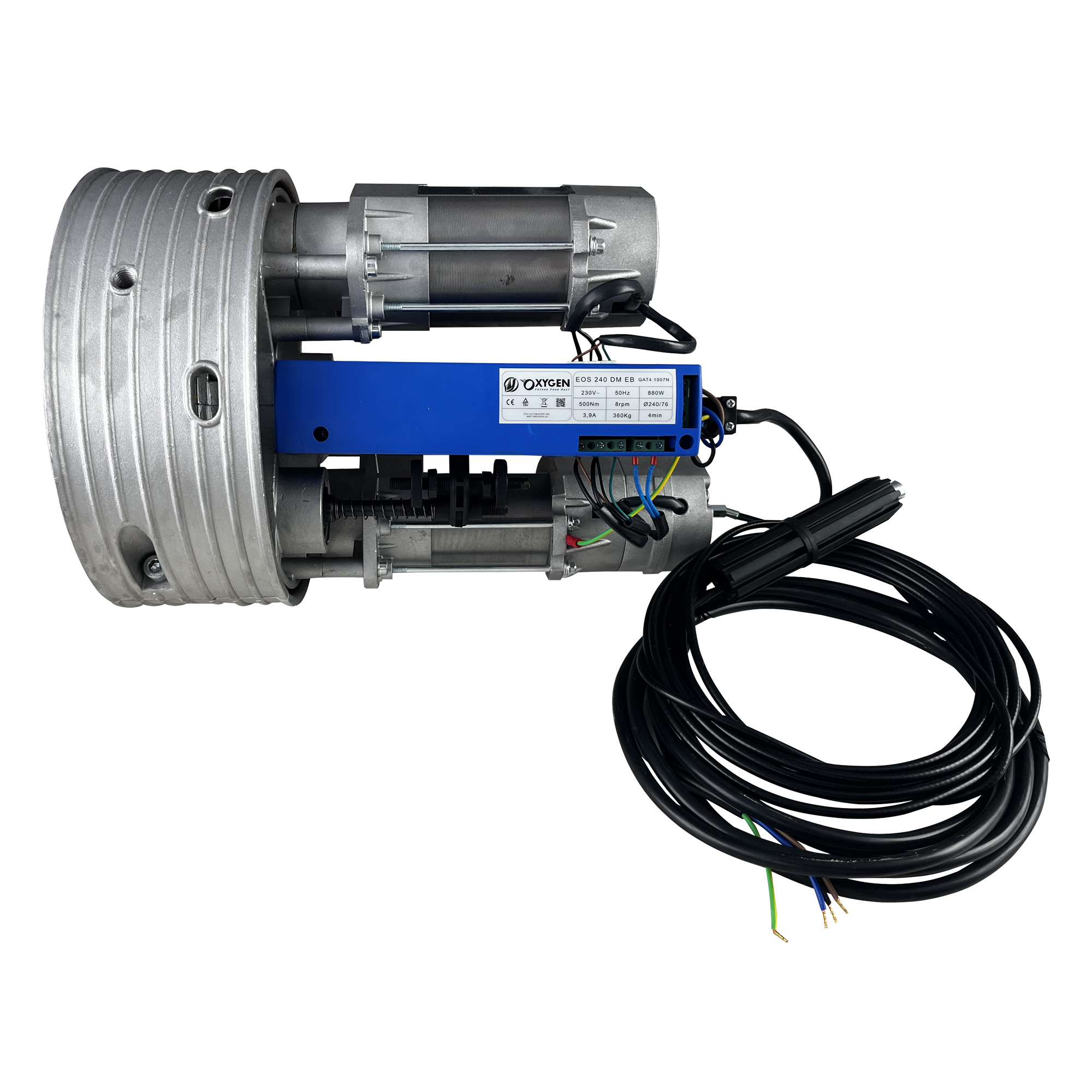

| EOS 240 EB DM | 230V | up to 360Kg | 240 / 260 mm | 76 / 55 mm |
| TECHNICAL DATA | EOS 200 EB | EOS 200 EB DM | EOS 240 EB DM |
|---|---|---|---|
| Current | 2,6 A | 4,2 A | 3,9 A |
| Motor Power | 580 W | 920 W | 880 W |
| Torque | 180 Nm | 360 Nm | 500 Nm |
| Speed | 10 Rpm | 10 Rpm | 8 Rpm |
| Operating Temperature | -20°C +80°C | -20°C +80°C | -20°C +80°C |

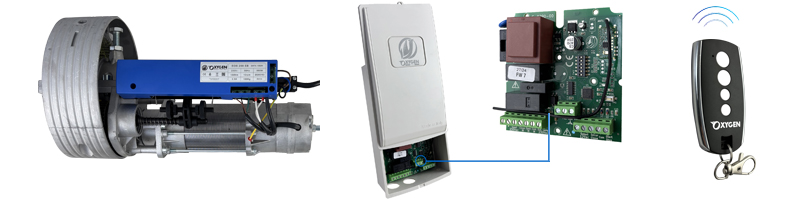

1x Motor (Single or Double on request) + Control Board with Receiver and Box + 1x Remote Control

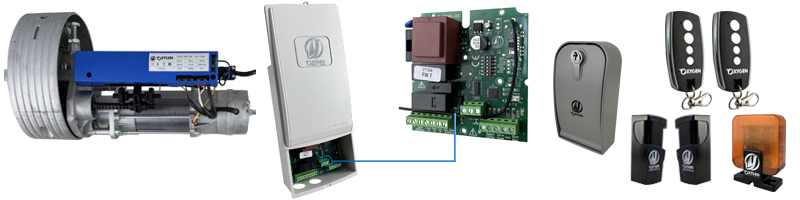

1x Motor (Single or Double on request) + Control Board with Receiver and Box + 1x Safety Box + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
