Clean and elegant design, quick and easy installation.
| TECHNICAL DATA | DETAILS |
|---|---|
| Power supply | 230Vac 50-60Hz 1200W max. |
| Flashing light output | 230Vac 500W max. |
| Motor output | 230Vac 50/60Hz 1200W max. |
| Power supply to photocells | 24Vac 3W max |
| Working temperature | -10/+55 °C |
| Radio receiver (integrated) | 433Mhz |
| TX max codes in memory | 150 (CODE or PED CODE) |
| Board dimensions | 100x105x45 mm |
| Selectable logic: | Automatic or step-by-step |
| Slow down adjustable function | |
| Pedestrian opening | with pedestrian working time adjustment |
| 1 safety device input | |
| Easy electronic power adjustment | with designated trimmer |
| External devices connection | Normally open free contact |
| Limit Switches Inputs | NC Free Contacts |

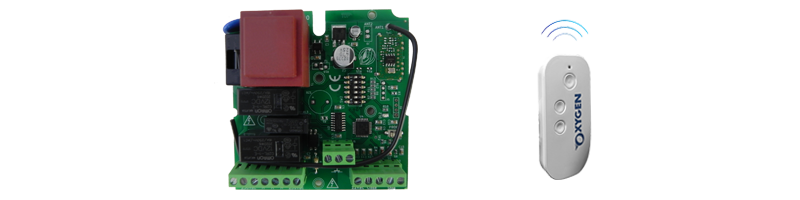

Control Board with Receiver + 1x Remote Control

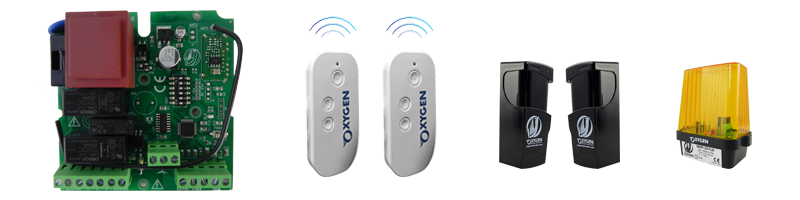

Control Board with Receiver + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
