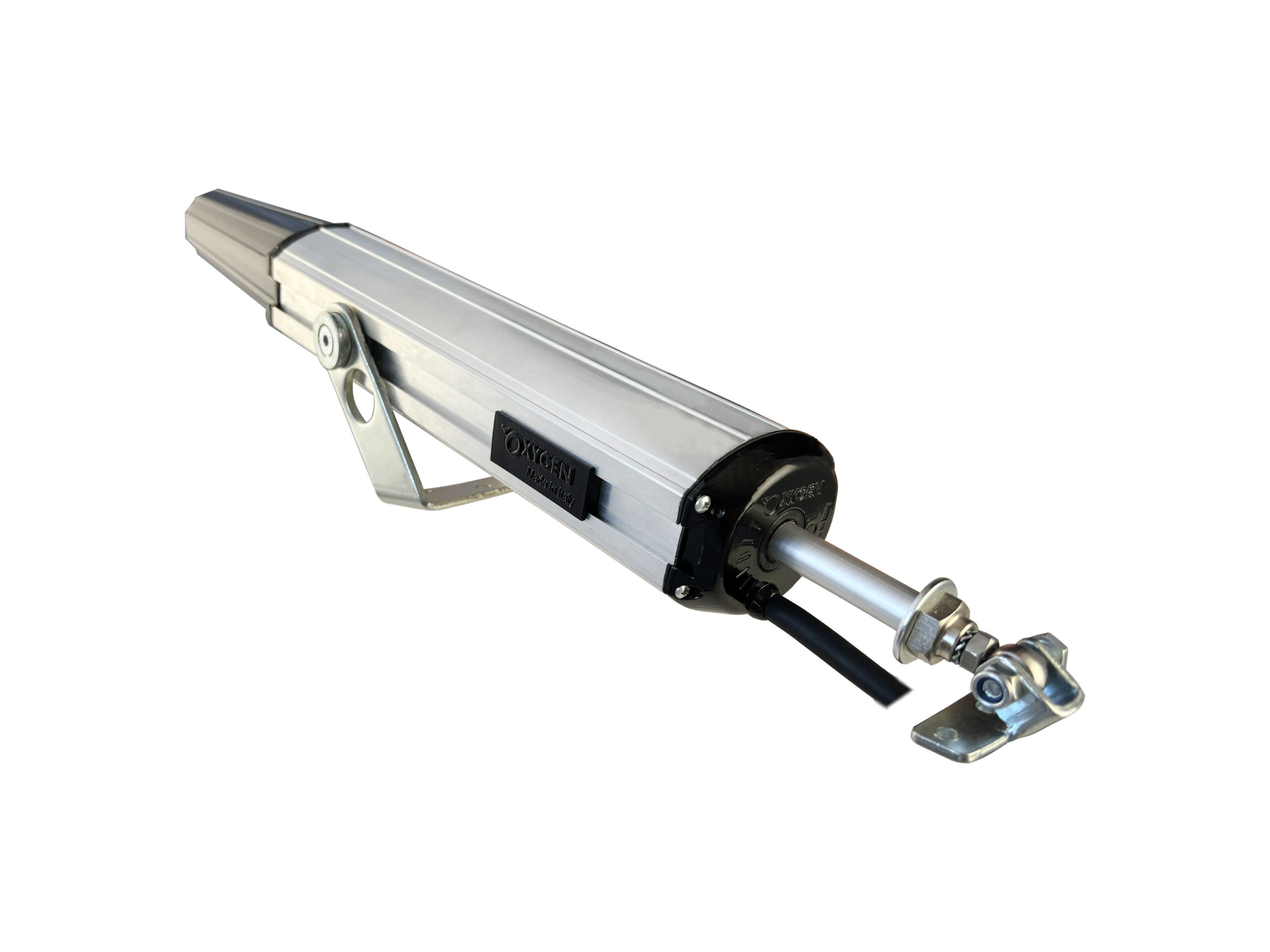

Teti Rod Actuator for Top Hinged and Pivot Windows, Domes and Sunshade Systems.
Special motors 24V on request
| PRODUCT | STROKE | THRUST FORCE | MOTOR POWER | SPEED | IP |
|---|---|---|---|---|---|
| Teti S | 180mm | 200N | 160W | 30mm/s | 44 |
| Teti S | 300mm | 200N | 160W | 30mm/s | 44 |
| Teti M | 200mm | 500N | 175W | 12mm/s | 55 |
| Teti M | 300mm | 500N | 175W | 12mm/s | 55 |
| Teti M | 400mm | 500N | 175W | 12mm/s | 55 |
| Teti L | 180mm | 2000N | 350W | 14mm/s | 40 |
| Teti L | 300mm | 2000N | 350W | 14mm/s | 40 |
| Teti L | 400mm | 2000N | 350W | 14mm/s | 40 |
| Teti L | 500mm | 2000N | 350W | 14mm/s | 40 |
