SARGON 230V & 24V

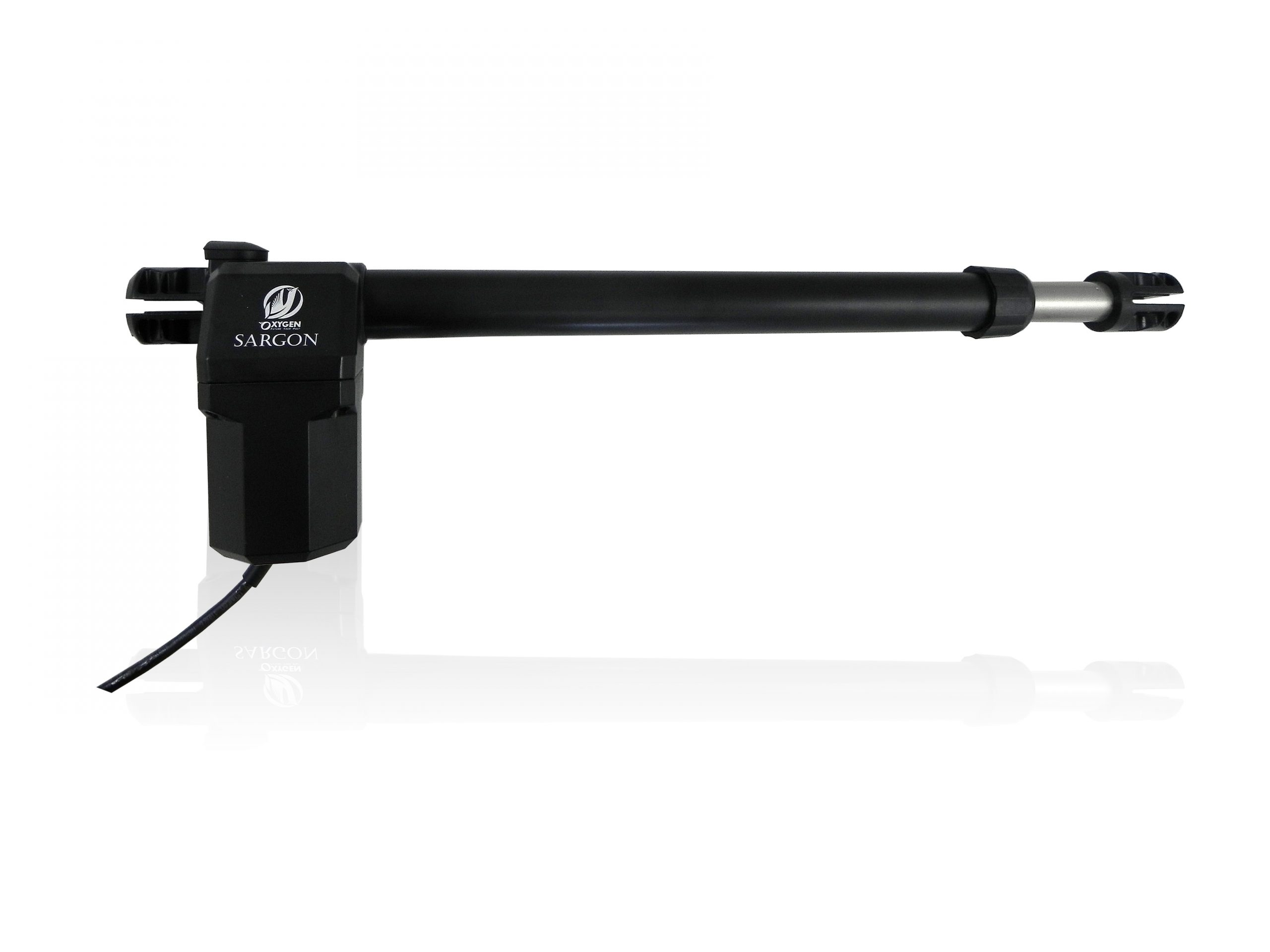

Sargon Electromechanical Motor

Worm Screw Technology

100% Metal and Aluminum Components

Clean and elegant design, quick and easy installation. Available in 24V and 230V, only motor and complete kit.

Special Motors 110V or 12V on request

PRODUCTSTROKEVOLTAGEGATE LEAF WIDTH / WEIGHTOPENING TIME
Sargon S300mm230V / 24Vup to 3 m / 350Kg15s
Sargon M400mm230V / 24Vup to 4 m / 350Kg20s
Sargon L600mm230V / 24Vup to 5 m / 350Kg29s
TECHNICAL DATA230V24V
Current1,5 A3 A
Motor Power330W70W
Thrust Force3300N3300N
Operating Temperature-25°C +60°C
Class IP protectionIP43
Maximum Opening Angle110°

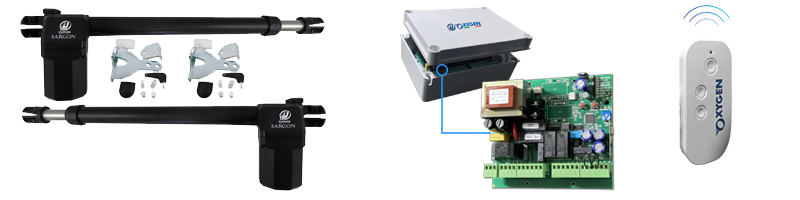

2x Motors (L&R) + Control Board with Receiver + 1x Remote Control

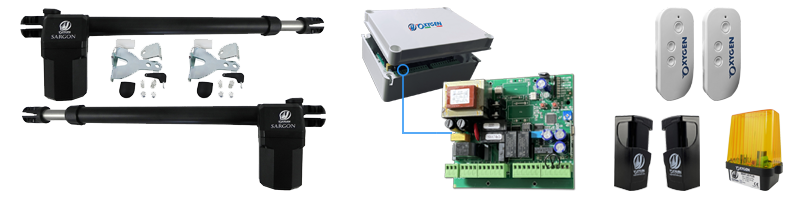

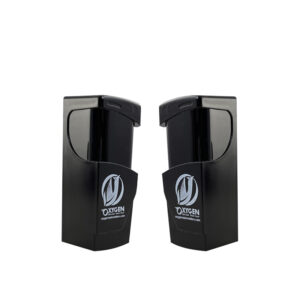

2x Motors (L&R) + Control Board with Receiver + 2x Remote Controls + 1x Pair of Photocells + 1x Flashing Light
