Clean design, quick and easy installation.

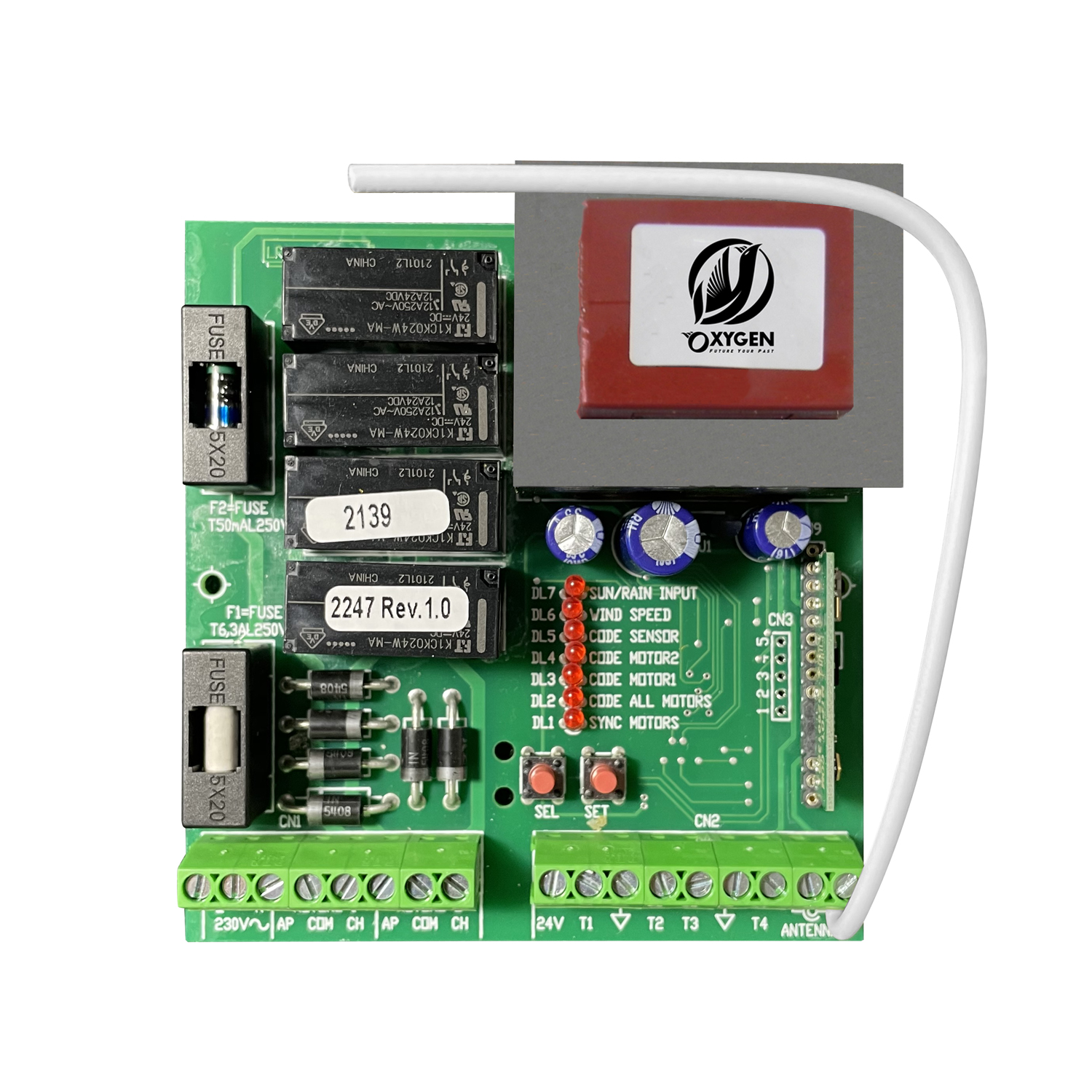

Once wired to a Wired Motor or Window Actuator, this control unit allows that motor to be opened both via an Rhea tx 3 remote control.
| TECHNICAL DATA | DETAILS |
|---|---|
| Power supply | 230V 50-60Hz 1200W max. |
| Motor output | 2 x 230V ~ 600W max. |
| Working temperature | -10/+55 °C |
| Radio receiver (integrated) | 433Mhz RTW |
| TX max codes in memory | 7 |
| Box dimensions | 110x121x47 mm |
| External devices connection | Normally open free contact |
| Opening and closing on two different remote control buttons |
